The ratio and size of positive sentinel lymph nodes predicts the involvement of non-sentinel lymph nodes following completion axillary lymph node dissection
Original Article

The ratio and size of positive sentinel lymph nodes predicts the involvement of non-sentinel lymph nodes following completion axillary lymph node dissection

M. N. Chauhan1, Talal Majeed2, Maria Ghaus1, Rajiv Dev1, Sana Ahmed1, Shiv Sapra1, Craig Sayers1, Zbigniew Kryjack1, Deedar Ali1

1Department of General Surgery, Pinderfields General Hospital, Wakefield, UK; 2Department of General Surgery, Wirral University teaching hospital, Wirral, UK

Contributions: (I) Conception and design: MN Chauhan, D Ali; (II) Administrative support: C Sayers, Z Kryjack, D Ali; (III) Provision of study materials or patients: R Dave, M Chauhan, M Ghaus, S Ahmed, S Sapra; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: S Sapra, C Sayers; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Talal Majeed. Department of General Surgery, Wirral University teaching hospital, Wirral, UK. Email: drtalalmajeed@hotmail.com.

Background: The role of completion axillary lymph node dissection (CALND) following positive sentinel lymph node biopsy (SLNB) is being actively debated. The involvement of our unit in the POSNOC trial (which has a no-treatment arm), has prompted a review of our unit’s CALND results, in order to examine predictors of involvement of non-sentinel lymph nodes (n-SLN).

Methods: We retrospectively analyzed our experience of SLNB between July 2008 to 2013. A total of 1,152 breast cancer patients underwent SLNB based on lymphoscintigraphy, intraoperative gamma probe detection, and blue dye mapping using 99mTc-nanocolloid and Patent Blue V injected peri-areola.

Results: Out of 1,152 SLNB performed, 224 were positive for metastatic disease; 203 patients were anesthetically capable of progressing to CALND. On univariate analysis, involved n-SLN on CALND could not be predicted by age, size of tumor, procedure performed, lymph vascular invasion, number of positive SLN, receptor status; ER, PR, HER2 or triple negative. There was a trend toward higher incidence of positive n-SLN with increasing grade, and extracapsular spread, but these did not reach statistical significance. Positive n-SLN on CALND was however predicted by macrometastases in SLN and ratio of positive nodes on SLNB.

Conclusions: In our series of more than 200 SLNB, a ratio of >0.5 positive SLN yield and presence of macrometastases in positive SLN, were associated with positive n-SLN on CALND.

Keywords: Micrometastasis; macrometastasis; sentinel lymph nodes (SLN); axillary node clearance


Received: 25 September 2019; Accepted: 24 October 2019; Published: 25 March 2020.

doi: 10.21037/abs.2019.10.06


Introduction

Each year, around 54,900 women in the UK are diagnosed with new breast cancer, that’s around 150 every day and the majority (81%) undergo surgical treatment (1).

The results of axillary lymph node (LN) is an important prognostic factor for invasive breast cancer surgery. Sentinel lymph node biopsy (SLNB) is a recognized method for evaluating pathological status of axilla in clinically negative axilla in early breast cancer. This enables correct and reliable staging of the axilla and decreased shoulder and arm morbidity (2-5). The positive LN metastasis detected on SLNB, leads the patient to undergo completion axillary lymph node dissection (CALND). Importantly research has indicated that additional LN metastasis is not found on axillary dissection in around 40–60% of clinically detectable node-negative Axilla (6-8). Excluding CALND did not affect local control or prognosis for SLNB-positive patients, reported in the prospective randomized study (9,10). The Z0011 trial reported that excluding CALND did not result in poor survival or local control in SLNB-positive patients with low T stage, no more than two SLNs, and no gross extracapsular extension in the involved nodes. The trial also indicated that CALND should be avoided if SLNB metastases (SLNMs) are detected in only one or two nodes (9,10). Many authors have recommended scoring systems and nomograms to predict the involvement of non-SLNs and to avoid CALND and in order to increase the quality of life of the early breast cancer patients (11-14). Many studies have been performed to explore the question, but it is not yet concluded in which subgroup of SLNB positive patients CALND can be safely avoided.

The current UK National Institute of Clinical Excellence guidelines (15) recommend axillary node clearance or axillary radiotherapy for women with early stage breast cancer and one or two sentinel node metastases. This recommendation assumes that axillary treatment reduces the risk of axillary recurrence and might improve survival. Axillary node clearance is usually a second operation.

The purpose of our research was to identify the link between NSLNM and SLNB with the help of clinic-pathologic variables identified on primary breast cancer and positive SLNB.


Methods

This is a retrospective analysis in a single institution. Patient with SLNB were identified and data on the procedures was collected from pathology department of Pinderfield Hospital Wakefield. Once patient details were identified, the electronic notes and results were searched to obtain further data. One thousand and one hundred fifty-two patients had SLNB from July 2008 to 2013.

Statistics

For univariate analysis χ2 and Fisher’s exact test was used to determine associations between categorical data and PCR. ROC analysis was performed to determine optimum cut-offs for continuous data prior to categorizing into binary variables.

All data analysis was performed using SPSS version 20 for mac. All reported P values are two-sided.

Surgery and procedure

A total of 1,152 breast cancer patients underwent SLNB based on lymphoscintigraphy, intra-operative gamma probe detection, and blue dye mapping using 99mTc-nanocolloid and Patent Blue V injected peri-areola. We used dual method blue dye and 99m Tc-Nano colloid due to higher accuracy.

Pathological evaluation

Micromets, Macromets and ITC were classified as per AJCC 6th Edition.

Macrometastatic was considered positive when metastasis of 2 mm or large were found.

Micrometastatic was considered with nodal metastasis 0.2 to 2 mm, isolated tumor cells were considered with metastasis of 0.2 mm or less.

We use immunohistochemistry for ER, PR and HER2 which are all performed and interpreted in our department. For this study ER and PR status, Quick score of 4 or more was considered positive. However Current guidelines for ER and PR state that they should be considered positive if 1% or more of tumor cell nuclei are positive.

For Her2, if the score on immunohistochemistry is 0 or 1+, we call this negative. If it is 3+, we call this positive. If it is 2+, this is considered borderline and we perform Her2 FISH analysis (Fluorescent In Situ Hybridization test). We do not perform or interpret FISH in our department we send sample to Leeds Teaching Hospital.


Results

Out of 1,152 SLNB performed, 224 (19.4%) were positive for metastatic disease which includes macrometastases in 150 (67.0%) and micrometastases in 72 (32.1%) and ITC in 2 (0.9%).

Types of primary cancer in SLNB positive patients IDC 84%, mixed type 9%, lobular 4.74%, others 1.74%, tubular 0.43%.

Mastectomies were performed in 45% and WLE (breast conserving surgery) in 53% of patients.

CALND was not performed in 20 cases (9 macrometastases, 10 micrometastases, and 1 ITC), largely due to concerns regarding fitness for anesthesia; 1–2 SLN were removed in 65.8% patients.

We looked for following twelve variable and their impact on diagnosis of Non SLN on CALND. Variables are age, grade, tumor size, LVI, size of LN metastasis, number of positive nodes, ratio of Positive nodes, extra-capsular spread, ER status, PR status, HER2 status and triple negative status (Table 1).

Table 1

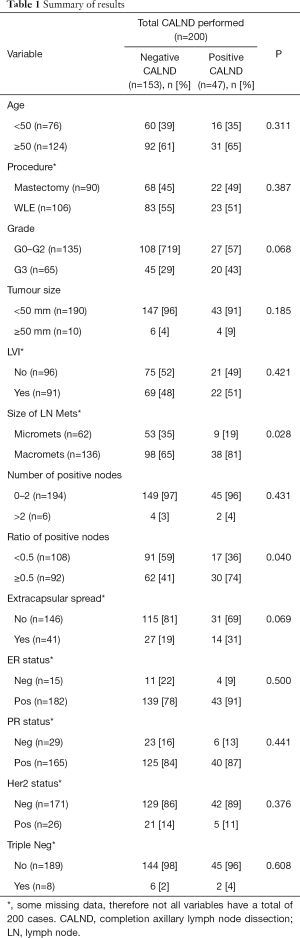

Table 1 Summary of results
Full table

From our data Size of LNs (micro & macro) metastasis and ratio of positive nodes showed statistically significant P value which are 0.028 and 0.040 respectively.

Moreover, our data, primary tumor grade and extra capsular nodal spread shows trends towards statistically significant P value which are 0.068 and 0.069 respectively but did not achieved statistically significant value.

Age, tumor size, LVI, number of positive nodes, ER status, PR status, HER 2 status and triple negative status did show any significant statistical value. See all P values in Table 1.


Discussion

Breast surgeons are always concerned about the risk of remnant non-SLN metastasis if they have not performed CALND. To predict the risk of non-SLN metastasis several nomograms example Memorial Sloan-Kettering Cancer Centre (MSKCC) nomogram, the Stanford nomogram have been proposed but none of them are perfect (16).

Literature suggests that axillary nodal status is helpful in prognosis and predicting for the staging and treating the breast cancer. It is also established that SNLB can help in staging axillary LNs in clinically axillary-negative breast cancer (17-19).

Studies suggest that about 40–70% of patients with positive SLN do not have further axillary LNs metastasis (20,21).

That is why, axillary dissection can be avoided in these patients (22,23). A recent clinical trial suggests that axillary LNs dissection is unnecessary if positive SLNM is detected in one or two nodes.

The ACOSOG Z0011 trial results showed that SLNB alone without ALND results in extremely low local and regional recurrence and excellent overall survival comparable to the patients undergoing CALND if SLNM is present in two or fewer nodes (9).

Moreover, Dutch AMAROS trial compared ALND with radiotherapy in T1–T2 patients with a positive SLNB (24). The trial showed similar results in terms of axillary control between the two treatments. However, the trial showed that patients treated with CALND had notably more morbidities than those treated with radiotherapy.

Depending on these findings many studies have highlighted factors associated with the histopathological variables of the primary tumor and the SLNB and tried to generate a nomogram to predict the risk of NSLNM (12,14,20,25-37).

These studies have indicated that different pathologic characteristics of the primary tumor and the SLNB were associated with an increased probability of additional positive NSLN.

However, there is no consensus on the predictive factors of NSLNM until now. The most commonly assessed risk factors in other studies include primary tumor size, grade of primary tumor, the maximum size of positive SLN, LVI, ECI in SLN, ER, PR, and HER2 statuses. The association of tumor size with the probability of NSLNM has been published in many studies (6,33-36).

Ozmen et al. also showed that tumor size over 2 cm was linked with a higher rate of SLNM and NSLNM (33). Dingemans et al. also reported that the primary tumor size was a predictor of NSLNM (12).

Some studies have shown that tumor size was not associated with a higher rate of NSLNM (14,20,38,39), whereas, some studies have reported contrasting results (27,30,33,36).

Research have also shown that the presence of micrometastasis in SLN was associated with lower rates of NSLNM, as compared to macrometastasis (14,26,33).

It has also been published that the size of the SLNM has no significant relationship with NSLNM after multivariate analysis (20,28,36,40).

The Memorial Sloan Kettering Cancer Center (MSKCC) model, which is the most widely used model to predict NSLNM, also did not include the size of SLNM (22).

Similarly, few studies have shown that age has notable association with positive NSLNMs in multivariate analyses (28,41). However, several studies could not find link between age and NSLNM (25,30-39).

Some investigations have demonstrated that LVI is a predictor of NSLNM (20,29,31).

However, Yildiz et al. and Canavese et al. have shown that LVI is not a significant predictor of NSLNM in logistic regression analysis (27,32).

Shigematsu et al. demonstrated that ECI at SLNB is an independent predictor of both NSLNM and poor prognosis for early stage breast cancer patients with SLNM (42). More over several studies have demonstrated ECI to be a predictor of NSLNM, (12,30,31,35) where as in some other studies this association was not found (23,38).

Some researchers have shown that multifocality of the primary tumor is a predictor of NSLNM (27,29). In ER/PR positive patients Axillary LN involvement has been reported to be higher (8,16). Significant relationship was shown between HER2 expression and NSLNM by Meretoja et al. and Sanjuán et al. (8,21). However, this relationship was not demonstrated in other studies (16,23,43,44).

Several nomograms have been invented to predict the presence of cancer in NSLN in the axilla. (11,16,22,23,29) The most commonly used nomogram was postulated by MSKCC (9,22). This nomogram constitutes primary tumor size, grade, number of positive and negative SLNs, SLN detection method, ER status, LVI, and tumor multifocality to predict NSLNM. Although the predictive accuracy of these nomograms has been divided as some studies approving it, (14,29,37,44) others not (38,45-47).


Conclusions

On univariate analysis, involved n-SLN on CALND could not be predicted by age, size of tumor, procedure performed, lympho-vascular invasion, number of positive SLN, receptor status; ER, PR, HER2 or triple negative. There was a trend toward higher incidence of positive n-SLN with increasing grade, and extracapsular spread, but these did not reach statistical significance.

Positive n-SLN on CALND was however predicted by macrometastases in SLN and ratio of positive nodes on SLNB.

In our series of more than 200 SLNB over 5 years, a ratio of >0.5 positive SLN yield and presence of macrometastases in positive SLN, were associated with positive n-SLN on CALND.


Acknowledgments

None.


Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Written in compliance with NHS data protection law where patient information was anonymized.


References

  1. . Available online: https://www.cancerresearchuk.org/health-professional/cancer-statistics/statistics-by-cancer-type/breast-cancerCancer Research UK.
  2. Haid A, Kuehn T, Konstantiniuk P, et al. Shoulder-arm morbidity following axillary dissection and sentinel node only biopsy for breast cancer. Eur J Surg Oncol 2002;28:705-10. [Crossref] [PubMed]
  3. Veronesi U, Paganelli G, Viale G, et al. A randomized comparison of sentinel-node biopsy with routine axillary dissection in breast cancer. N Engl J Med 2003;349:546-53. [Crossref] [PubMed]
  4. Gurleyik G, Aker F, Sekmen U, et al. Accuracy of sentinel lymph node biopsy for the assessment of axillary status in patients with early (T1) breast carcinoma. J Coll Physicians Surg Pak 2005;15:697-700. [PubMed]
  5. Nitz U, Grosse R, Thomssen C. Breast cancer surgery: oncological aspects. Breast Care (Basel) 2006;1:229-333. [Crossref]
  6. Cho J, Han W, Lee JW, et al. A scoring system to predict nonsentinel lymph node status in breast cancer patients with metastatic sentinel lymph nodes: a comparison with other scoring systems. Ann Surg Oncol 2008;15:2278-86. [Crossref] [PubMed]
  7. Wong SL, Edwards MJ, Chao C, et al. Predicting the status of the nonsentinel axillary nodes: a multicenter study. Arch Surg 2001;136:563-8. [Crossref] [PubMed]
  8. Sanjuán A, Escaramis G, Vidal-Sicart S, et al. Predicting nonsentinel lymph node status in breast cancer patients with sentinel lymph node involvement: evaluation of two scoring systems. Breast J 2010;16:134-40. [Crossref] [PubMed]
  9. Giuliano AE, Hunt KK, Ballman KV, et al. Axillary dissection vs no axillary dissection in women with invasive breast cancer and sentinel node metastasis: a randomized clinical trial. JAMA 2011;305:569-75. [Crossref] [PubMed]
  10. Öz B, Akcan A, Doğan S, et al. Prediction of nonsentinel lymph node metastasis in breast cancer patients with one or two positive sentinel lymph nodes. Asian J Surg 2018;41:12-9. [Crossref] [PubMed]
  11. Gur AS, Unal B, Ozbek U, et al. Validation of breast cancer nomograms for predicting the non-sentinel lymph node metastases after a positive sentinel lymph node biopsy in a multicentre study. Eur J Surg Oncol 2010;36:30-5. [Crossref] [PubMed]
  12. Dingemans SA, de Rooij PD, van der Vuurst de Vries RM, et al. Validation of six nomograms for predicting non-sentinel lymph node metastases in a Dutch breast cancer population. Ann Surg Oncol 2016;23:477-81. [Crossref] [PubMed]
  13. Kuo YL, Chen WC, Yao WJ, et al. Validation of Memorial Sloan- Kettering Cancer Center nomogram for prediction of nonsentinel lymph node metastasis in sentinel lymph node positive breast cancer patients an international comparison. Int J Surg 2013;11:538-43. [Crossref] [PubMed]
  14. Yeniay L, Carti E, Karaca C, et al. A new and simple predictive formula for non-sentinel lymph node metastasis in breast cancer patients with positive sentinel lymph nodes, and validation of 3 different nomograms in Turkish breast cancer patients. Breast Care (Basel) 2012;7:397-402. [Crossref] [PubMed]
  15. National Institute for Health and Care Excellence. Early and locally advanced breast cancer: diagnosis and treatment. Available online: http://guidance nice org uk/CG80
  16. Kohrt HE, Olshen RA, Bermas HR, et al. New models and online calculator for predicting non-sentinel lymph node status in sentinel lymph node positive breast cancer patients. BMC Cancer 2008;8:66. [Crossref] [PubMed]
  17. Lyman GH, Giuliano AE, Somerfield MR, et al. American society of clinical oncology guideline recommendations for sentinel lymph node biopsy in early-stage breast cancer. J Clin Oncol 2005;23:7703-20. [Crossref] [PubMed]
  18. Veronesi U, Paganelli G, Galimberti V, et al. Sentinel-node biopsy to avoid axillary dissection in breast cancer with clinically negative lymph-nodes. Lancet 1997;349:1864-7. [Crossref] [PubMed]
  19. Krag D, Weaver D, Ashikaga T, et al. The sentinel node in breast cancer da multicenter validation study. N Engl J Med 1998;339:941-6. [Crossref] [PubMed]
  20. Eldweny H, Alkhaldy K, Alsaleh N, et al. Predictors of nonsentinel lymph node metastasis in breast cancer patients with positive sentinel lymph node (pilot study). J Egypt Natl Canc Inst 2012;24:23-30. [Crossref] [PubMed]
  21. Meretoja TJ, Leidenius MH, Heikkila PS, et al. International multicenter tool to predict the risk of nonsentinel node metastases in breast cancer. J Natl Cancer Inst 2012;104:1888-96. [Crossref] [PubMed]
  22. Van Zee KJ, Manasseh DM, Bevilacqua JLB, et al. A nomogram for predicting the likelihood of additional nodal metastases in breast cancer patients with a positive sentinel node biopsy. Ann Surg Oncol 2003;10:1140-51. [Crossref] [PubMed]
  23. van den Hoven I, van Klaveren D, Voogd AC, et al. A Dutch prediction tool to assess the risk of additional axillary non-sentinel Lymph node involvement in sentinel node-positive breast cancer patients. Clin Breast Cancer 2016;16:123-30. [Crossref] [PubMed]
  24. Donker M, Slaets L, van Tienhoven G, et al. Axillary lymph node dissection versus axillary radiotherapy in patients with a positive sentinel node: the AMAROS trial. Ned Tijdschr Geneeskd 2015;159:A9302. [PubMed]
  25. Reynders A, Brouckaert O, Smeets A, et al. Prediction of non sentinel lymph node involvement in breast cancer patients with a positive sentinel lymph node. Breast 2014;23:453-9. [Crossref] [PubMed]
  26. Boler DE, Uras C, Ince U, et al. Factors predicting the non-sentinel lymph node involvement in breast cancer patients with sentinel lymph node metastases. Breast 2012;21:518-23. [Crossref] [PubMed]
  27. Yıldız R, Urkan M, Hancerliogulları O, et al. Comparison of five different popular scoring systems to predict nonsentinel lymph node status in patients with metastatic sentinel lymph nodes: a tertiary care center experience. Springerplus 2015;4:651. [Crossref] [PubMed]
  28. Moosavi SA, Abdirad A, Omranipour R, et al. Clinicopathologic features predicting involvement of non-sentinel axillary lymph nodes in Iranian women with breast cancer. Asian Pac J Cancer Prev 2014;15:7049-54. [Crossref] [PubMed]
  29. Koca B, Kuru B, Ozen N, et al. A breast cancer nomogram for prediction of non-sentinel node metastasisdvalidation of fourteen existing models. Asian Pac J Cancer Prev 2014;15:1481-8. [Crossref] [PubMed]
  30. Gurleyik G, Aker F, Aktekin A, et al. Tumor characteristics influencing non-sentinel lymph node involvement in clinically node negative patients with breast cancer. J Breast Cancer 2011;14:124-8. [Crossref] [PubMed]
  31. Jinno H, Sakata M, Asaga S, et al. Predictors to assess nonsentinel lymph node status in breast cancer patients with sentinel lymph node metastasis. Breast J 2008;14:551-5. [Crossref] [PubMed]
  32. Canavese G, Bruzzi P, Catturich A, et al. A risk score model predictive of the presence of additional disease in the axilla in early-breast cancer patients with one or two metastatic sentinel lymph nodes. Eur J Surg Oncol 2014;40:835-42. [Crossref] [PubMed]
  33. Ozmen V, Karanlik H, Cabioglu N, et al. Factors predicting the sentinel and non-sentinel lymph node metastases in breast cancer. Breast Cancer Res Treat 2006;95:1-6. [Crossref] [PubMed]
  34. Gur AS, Unal B, Johnson R, et al. Predictive probability of four different breast cancer nomograms for nonsentinel axillary lymph node metastasis in positive sentinel node biopsy. J Am Coll Surg 2009;208:229-35. [Crossref] [PubMed]
  35. Toshikawa C, Koyama Y, Nagahashi M, et al. Predictive factors for non-sentinel lymph node metastasis in the case of positive sentinel lymph node metastasis in two or fewer nodes in breast cancer. J Clin Med Res 2015;7:620-6. [Crossref] [PubMed]
  36. Friedman D, Gipponi M, Murelli F, et al. Predictive factors of non-sentinel lymph node involvement in patients with invasive breast cancer and sentinel node micrometastases. Anticancer Res 2013;33:4509-14. [PubMed]
  37. Bi X, Wang Y, Li M, et al. Validation of the Memorial Sloan Kettering Cancer Center nomogram for predicting nonsentinel lymph node metastasis in sentinel lymph nodepositive breast-cancer patients. Onco Targets Ther 2015;8:487-93. [PubMed]
  38. Chen K, Zhu L, Jia W, et al. Validation and comparison of models to predict non-sentinel lymph node metastasis in breast cancer patients. Cancer Sci 2012;103:274-81. [Crossref] [PubMed]
  39. Chue KM, Yong WS, Thike AA, et al. Predicting the likelihood of additional lymph node metastasis in sentinel lymph node positive breast cancer: validation of the Memorial Sloan-Kettering Cancer Centre (MSKCC) nomogram. J Clin Pathol 2014;67:112-9. [Crossref] [PubMed]
  40. Chen JY, Chen JJ, Xue JY, et al. Predicting non-sentinel lymph node metastasis in a Chinese breast cancer population with 1-2 positive sentinel nodes: development and assessment of a new predictive nomogram. World J Surg 2015;39:2919-27. [Crossref] [PubMed]
  41. Aitken E, Osman M. Factors affecting nodal status in invasive breast cancer: a retrospective analysis of 623 patients. Breast J 2010;16:271-8. [Crossref] [PubMed]
  42. Shigematsu H, Taguchi K, Koui H, et al. Clinical significance of extracapsular invasion at sentinel lymph nodes in breast cancer patients with sentinel lymph node involvement. Ann Surg Oncol 2015;22:2365-71. [Crossref] [PubMed]
  43. Yang B, Yang L, Zuo WS, et al. Predictors to assess non-sentinel lymph node status in breast cancer patients with only one sentinel lymph node metastasis. Chin Med J (Engl) 2013;126:476-81. [PubMed]
  44. Unal B, Gur AS, Kayiran O, et al. Models for predicting nonsentinel lymph node positivity in sentinel node positive breast cancer: the importance of scoring system. Int J Clin Pract 2008;62:1785-91. [Crossref] [PubMed]
  45. Andersson Y, Frisell J, de Boniface J, et al. Prediction of non-sentinel lymph node status in breast cancer patients with sentinel lymph node metastases: evaluation of the Tenon score. Breast Cancer (Auckl) 2012;6:31-8. [Crossref] [PubMed]
  46. Coufal O, Pavlík T, Fabian P, et al. Predicting non-sentinel lymph node status after positive sentinel biopsy in breast cancer: what model performs the best in a Czech population? Pathol Oncol Res 2009;15:733-40. [Crossref] [PubMed]
  47. Liu M, Wang S, Pan L, et al. A new model for predicting non-sentinel lymph node status in Chinese sentinel lymph node positive breast cancer patients. PLoS One 2014;9:e104117. [Crossref] [PubMed]
doi: 10.21037/abs.2019.10.06
Cite this article as: Chauhan MN, Majeed T, Ghaus M, Dev R, Ahmed S, Sapra S, Sayers C, Kryjack Z, Ali D. The ratio and size of positive sentinel lymph nodes predicts the involvement of non-sentinel lymph nodes following completion axillary lymph node dissection. Ann Breast Surg 2020;4:4.
